T56U11.23 Firmware Software Download

500

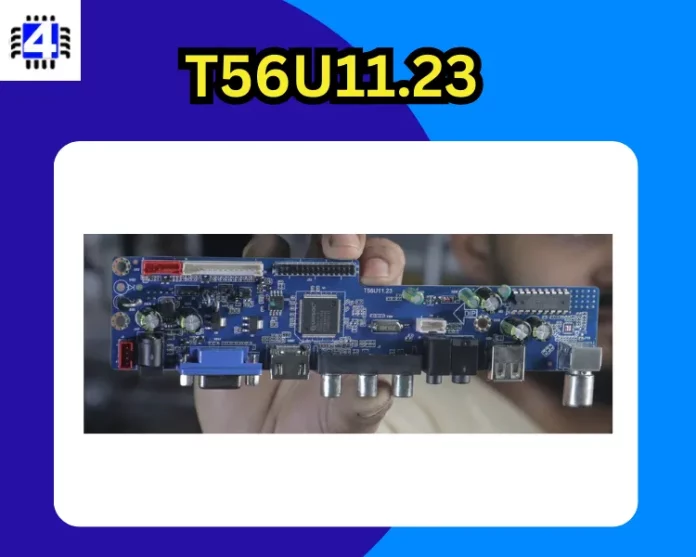

The T56U11.23 is a versatile jumper board equipped with a multi-remote and resolution software. It features the UTS6710-X chipset and supports display formats up to 1920×1080, with aspect ratios of 4:3, 16:9, and 16:10. The board includes a tuner and is powered by the CD1517CP sound system. It has a SPI memory capacity of 25Q32 (4mb) and supports multiple resolution codes.

The T56U11.23 offers various general specifications, including optional TV system compatibility and single-channel or dual-channel LVDS panel interface. The key button functions include CH-/CH+/MENU/VOL-/VOL+, Source/Power. It supports a multi-language OSD and comes with built-in games. The input/output ports include HDMI, VGA, AV, USB, RF TV interface, and Earphone Out. The audio output power is 2 x 3 Watt (8 ohms), and the panel voltage can be set to +3.3V/+5V/+12V DC through jumping cap settings. The board also features a USB port for firmware upgrades and multimedia playback, supporting various file formats such as audio, video, pictures, and text.

In terms of electrical parameters, the T56U11.23 operates with a working input voltage of DC +12 Volt. The maximum current without a panel is 2000mA, and the standby power consumption for the motherboard alone is less than 0.2W. The USB port supports a maximum current of 500mA. Additionally, the board can be controlled through IR using a remote control.

Multi-Resolution Code:

  • INPUT/SOURCE 031187 FOR 1920X1080
  • INPUT/SOURCE 031181 FOR 1366X768
  • INPUT/SOURCE 031183 FOR 1280X1024
  • INPUT/SOURCE 031184 FOR 1440X900
  • INPUT/SOURCE 031185 FOR 1600X900
  • INPUT/SOURCE 031186 FOR 1680X1050
  • INPUT/SOURCE 031182 FOR 1024X768
T56U11.23 Firmware Software Download
T56U11.23 Firmware Software Download

T56U11.23 Specification

SpecificationValue
Model No.T56U11.23
Main ChipsetUTS6710-X
Display Formatup to 1920×1080
Aspect Ratio4:3, 16:9 & 16:10
TunerYes
SoundCD1517CP
SPI Memory25Q32 (4mb)
Multi Resolution Codes
TV SystemOptional
Panel InterfaceSingle-channel or Dual-channel LVDS
Key Button FunctionsCH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSDYes
GamesYes
Input/Output PortsHDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power2 x 3 Watt (8 ohms)
Panel Voltage+3.3V/+5V/+12V DC (jumping cap setting)
USB PortYes
USB File FormatAudio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR ControlYes (Controllable by Remote Control)
Working Input VoltageDC +12 Volt
Maximum Current2000mA (Without Panel)
Standby Power<0.2W (for the motherboard only)
Maximum Current for USB500mA

Download T56U11.23 Firmware
