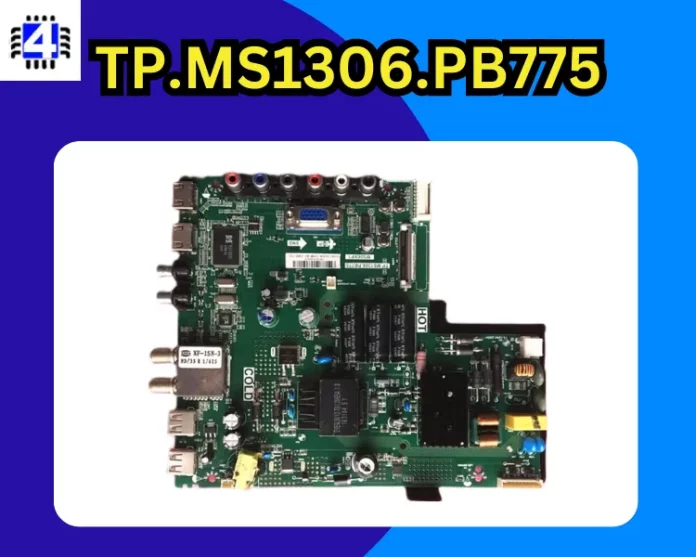

The TP.MS1306.PB775 MS06XP1 (Combo Board) is a motherboard commonly used in televisions. It features the MSD1306XS-Z1 as its main chipset, providing efficient performance and functionality.
The motherboard supports LED backlighting with a voltage of 63V and a current of 600mA, ensuring vibrant and energy-efficient display illumination. It is compatible with display formats of up to 1920×1080, allowing for high-definition visuals on screens ranging from 39 inches to 43 inches in size.
In terms of connectivity, the TP.MS1306.PB775 features an array of input/output ports, including HDMI, VGA, AV, USB, RF TV interface, and Earphone Out. These ports enable seamless connections with various external devices, such as gaming consoles, media players, and audio systems.
![TP.MS1306.PB775 Firmware Download](https://www.soft4led.com/wp-content/uploads/2023/06/TP.MS1306.PB775-Firmware-Download.webp)
Useful For You
TP.MS1306.PB775 Specification
Model No. | TP.MS1306.PB775 MS06XP1 (Combo Board) |
---|---|
Main Chipset | MSD1306XS-Z1 |
LED Backlight | 63v 600mA |
Display Format | up to 1920×1080 |
Panel Supported | 39″ to 43″ |
Aspect Ratio | 4:3, 16:9 & 16:10 |
TV System | PAL/SECAM/NTSC |
Panel Interface | Single channel or Dual-channel LVDS |
Key Button Functions | CH-/CH+/MENU/VOL-/VOL+/Source/Power |
Multi-Language OSD | Yes |
Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out |
Audio O/P Power | 2 x 8 Watt (8 ohms) |
Panel Voltage | 12V DC Default |
USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
IR Control | Yes (Controllable by Remote Control) |
Electrical Parameters | |
Working Input Voltage | AC 220V |
Maximum Current | 3000mA (Without Panel) |
Standby Power | <0.2W (for the motherboard only) |
Maximum Current for USB | 500mA |
