TSUMV59-T9C1 Firmware Download

89

The TSUMV59-T9C1 is a versatile analog LCD/LED TV Control Board designed specifically for the Asia Pacific and Middle East markets. It offers support for LED panels ranging from 24 inches to 42 inches, with a maximum resolution of 1920×1080. Additionally, it features a USB interface that enables multimedia playback and software upgrades.

The board is equipped with multiple HDMI ports (compatible with version 1.4) and supports HDCP version 1.1. It is compatible with both Non-HD and FHD LCD/LED panel screens. With widescreen support and a multi-language option, the TSUMV59-T9C1 caters to diverse user preferences. Notably, this control board boasts a unique Dual AV extendable feature. For those interested, the software collection for the TSUMV59-T9C1 is available for free download.

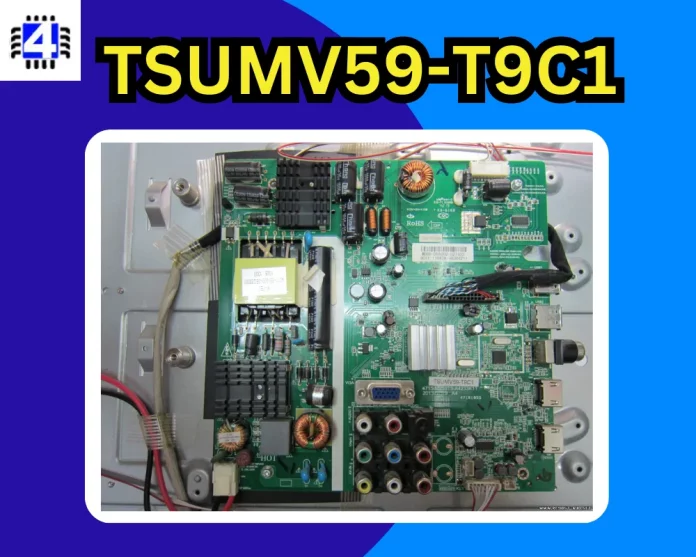

TSUMV59-T9C1 Firmware Download
TSUMV59-T9C1 Firmware Download

TSUMV59-T9C1 Specification

China
Board ModelTSUMV59-T9C1
Main ChipsetTSUMV59
TV SystemPAL/SECAM/NTSC
Panel InterfaceSingle-channel or Dual-channel LVDS
Key Button FunctionsCH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-LanguageYes
Input/Output PortsHDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power2 x 8 Watt (8 ohms)
Panel Voltage+5V/+12V DC (Default 12V)
USB PortYes (Firmware Upgrade and Multimedia Playback Support)
IR ControlYes (Controllable by Remote Control)
Electrical Parameters
Working Input VoltageAC220 Volt
Maximum Current5000mA (Without Panel)
Standby Power<0.5W
Maximum Current for USB500mA
Flash IC4MB
Firmware TypeBackup Dump

Download TSUMV59-T9C1 Firmware
