N.M358.801 Firmware Download

280

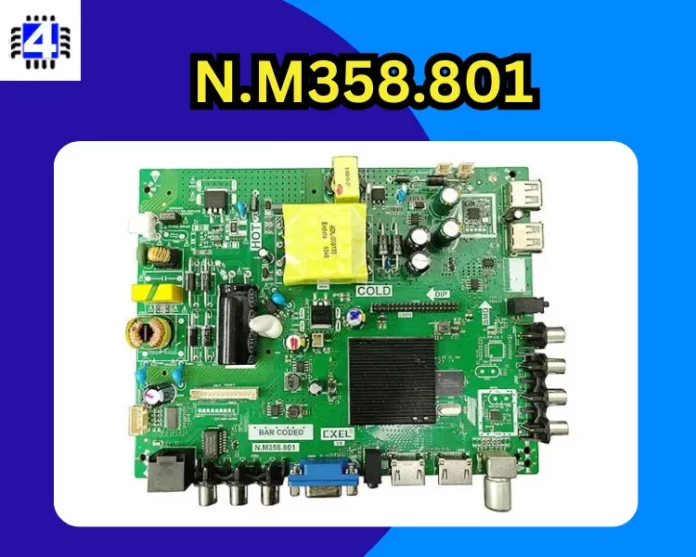

Introducing the N.M358.801, an innovative android Intelligent Network LCD/LED TV Board. This smart board supports 32-46 inch LED panels with a maximum resolution of 1920*1080. It combines a power card, backlight driver module, and ATV board into a single motherboard, saving space and enhancing convenience.

The N.M358.801 offers multiple input interface ports including USB, HDMI, AV, Scart, and LAN, with wireless connectivity also included. It supports loading software and playing multimedia files through the USB interface. Additionally, it is compatible with analog and digital TV signals (DVB-C/T/T2). Find the N-M358-801 firmware file below for easy installation and troubleshooting support.

N.M358.801 Firmware Download
N.M358.801 Firmware Download

N.M358.801 Specification

ModelN.M358.801
Main ChipsetMSD6A358ATG-8-003D
Resolution Supported1920×1080
CPUQuad-core ARM core processor A53
GPUDual Core
OSAndroid 4.4/8.0
RAM512 MByte (Android 4.4)/1 GByte (Android 8.0)
ROM4GByte/8GByte emmc flash
FeaturesTV, DTV, RJ45, AV IN2, HDMI IN2, USB IN*2, VGA, PC AUDIO IN, COAX OUT, EARPHONE OUT
TVPAL/DTMB/DVB-C/DVB-T/DVB-T2
Audio Output Power2X8 W (8Ω)
Backlight45-54.4v
Backlight Current600mA
Backlight Power45~65w
Service CodeMenu 1147
Firmware FileMstarUpgrade358.bin
Firmware TypeUSB upgradeable Firmware

Download N.M358.801 Firmware
