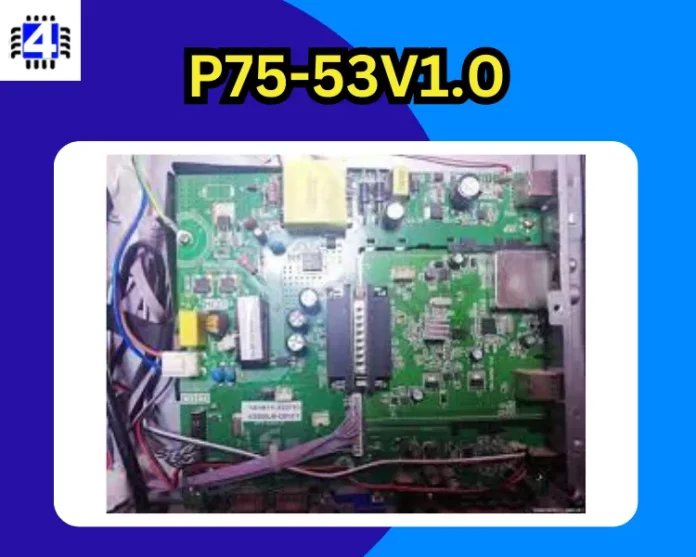

P75-53V1.0 Firmware Download

82

The P75-53V1.0 is a versatile analog LCD/LED TV Control Board designed specifically for the Asia Pacific and Middle East markets. It offers support for LED panels ranging from 24 inches to 42 inches, with a maximum resolution of 1920×1080, delivering high-quality visuals. Equipped with a USB interface, it enables convenient multimedia playback and software upgrades. Additionally, the P75-53V1.0 features multiple HDMI ports that support version 1.4 and HDCP version 1.1, ensuring compatibility with a variety of devices.

Whether you have non-HD or FHD LCD/LED panel screens, this control board can seamlessly integrate with them. The P75-53V1.0 also boasts a widescreen-supported design and provides users with a multi-language option, catering to diverse preferences. Notably, it offers a unique dual AV extendable feature, further expanding its functionality. For those interested, the software collection for the P75-53V1.0 is available for free download.

P75-53V1.0 Firmware Download
P75-53V1.0 Firmware Download

P75-53V1.0 Specification

ParameterValue
Board MakeChina
Board ModelP75-53V1.0
Main Chipset
TV SystemPAL/SECAM/NTSC
Panel InterfaceSingle-channel or Dual-channel LVDS
Key Button FunctionsCH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-LanguageYes
Input/Output PortsHDMI, VGA, AV, USB, RF TV interface, Earphone Out
Audio O/P Power2 x 8 Watt (8 ohms)
Panel Voltage+5V/+12V DC (Default 12V)
USB PortYes (Firmware Upgrade and Multimedia Playback Support)
IR ControlYes (Controllable by Remote Control)
Electrical Parameters:
Working Input VoltageAC220 Volt
Maximum Current5000mA (Without Panel)
Standby Power<0.5W
Maximum Current for USB500mA
Flash IC4MB
Firmware TypeBackup Dump

Download P75-53V1.0 Firmware
