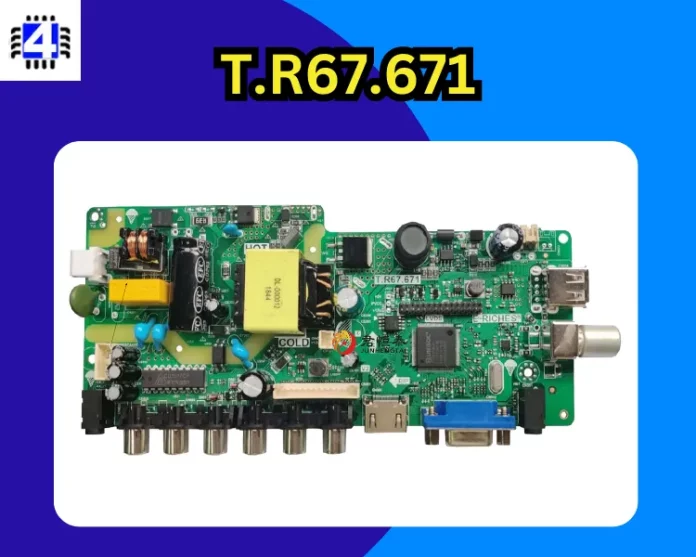

In this article, we are thrilled to present a comprehensive selection of firmware downloads for T.R67.671 main boards, covering all available resolutions. By offering access to this vital software, we aim to assist you in optimizing your TV’s performance, resolving issues, and unlocking exciting new features.
The UTS6710-X is the main chipset used in this TV model. It supports a display format of up to 1920×1080 resolution and is compatible with aspect ratios of 4:3, 16:9, and 16:10. The tuner used is the 5160, and the sound is powered by the CD1517CP. The TV system supports PAL, SECAM, and NTSC formats. The panel interface can be either single-channel or dual-channel LVDS. The TV includes key buttons for functions such as changing channels, accessing the menu, adjusting volume, selecting sources, and powering on/off. It has a multi-language OSD and offers various input/output ports including HDMI, VGA, AV, USB, RF TV interface, and Earphone Out.
The audio output power is 2 x 3 Watt (8 ohms), and the panel voltage is +5V/+12V DC. The TV supports USB for firmware upgrades and multimedia playback, with compatibility for audio, video, picture, and text file formats. It can be controlled via IR remote control and operates on AC 220 voltage. The maximum current for the TV without the panel is 2000mA, and the standby power consumption is less than 0.2W for the motherboard alone. The USB port can provide a maximum current of 500mA.
Useful For You
T.R67.671 Specification
| Parameter | Value |
|---|---|
| Main Chipset | UTS6710-X |
| Display Format | Up to 1920×1080 |
| Aspect Ratio | 4:3, 16:9 & 16:10 |
| Tuner | 5160 |
| Sound | CD1517CP |
| Bin Name | YDG_6710.code.bin |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Source/Power |
| Multi-Language OSD | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, and Earphone Out |
| Audio O/P Power | 2 x 3 Watt (8 ohms) |
| Panel Voltage | +5V/+12V DC |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | AC 220 |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
