T.R67W.07 Software Firmware Download » Soft4led

T.R67W.07 Software Firmware Download

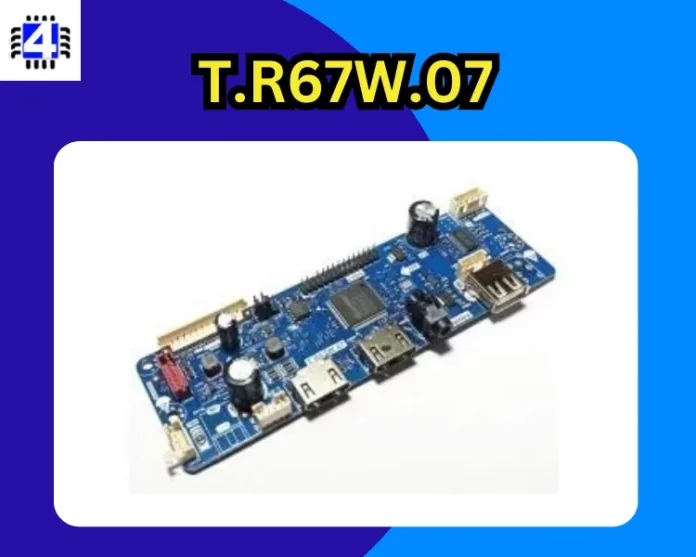

T.R67W.07 is a versatile jumper board equipped with multi-remote and resolution software. It features a Miracast function, which enables users to share their mobile screen with an LED TV. The board’s main chipset is the UTS6710W-X, and it supports display formats of up to 1920×1080 pixels. With aspect ratios of 4:3, 16:9, and 16:10, it offers flexibility in viewing options.

The T.R67W.07 jumper board can be controlled using an infrared (IR) remote control. It operates with a working input voltage of DC +12 Volt and has a maximum current of 2000mA without the panel. In standby mode, the motherboard consumes less than 0.2W of power. The USB port on the board supports a maximum current of 500mA, allowing for various peripheral devices to be connected.

T.R67W.07 Software Firmware Download
T.R67W.07 Software Firmware Download

T.R67W.07 Specification

Basic Info
Model No.T.R67W.07
Main ChipsetUTS6710W-X
Display Formatup to 1920×1080
Aspect Ratio4:3, 16:9 & 16:10
SPI Memory25Q64 (8mb)
Multi Resolution Codes
USB File FormatAudio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR ControlYes (Controllable by Remote Control)
Electrical Parameters
Working Input VoltageDC +12 Volt
Maximum Current2000mA (Without Panel)
Standby Power<0.2W (for the motherboard only)
Maximum Current for USB500mA

T.R67W.07 Software Download
